Detalhes do produto
Lugar de origem: Cantão, China
Marca: LINK-PP
Certificação: ISO9001,SGS,UL,CE,REACH
Número do modelo: LPJG0801ABNL
Documento: LPJG0801ABNL.pdf
Termos do pagamento & do transporte
Quantidade de ordem mínima: 10 unidades
Preço: $0.09-$0.85
Detalhes da embalagem: T&R
Tempo de entrega: Em estoque navio dentro de 3 dias
Termos de pagamento: L/C,D/A,D/P,T/T,Western Union
Habilidade da fonte: 5kk/mês
Número da peça: |
LPJG0801ABNL |
Número de portas: |
1x1 |
Trava: |
Abaixo |
Taxa de dados: |
1000Base-T |
PoE: |
Não |
Opção LED: |
Com |
EMI Tabs: |
Com |
Tipo de montagem: |
Tht |
Tipo de solda: |
Aceno |
Faixa de temperatura operacional: |
0 ° C a +70 ° C. |
Número da peça: |
LPJG0801ABNL |
Número de portas: |
1x1 |
Trava: |
Abaixo |
Taxa de dados: |
1000Base-T |
PoE: |
Não |
Opção LED: |
Com |
EMI Tabs: |
Com |
Tipo de montagem: |
Tht |
Tipo de solda: |
Aceno |
Faixa de temperatura operacional: |
0 ° C a +70 ° C. |
LPJG0801ABNL, Gigabit RJ45 magnetics jack, 1000Base-T RJ45 connector, LINK-PP RJ45, Ethernet Magjack, 1x1 port RJ45 through-hole, shielded RJ45 EMI tabs.

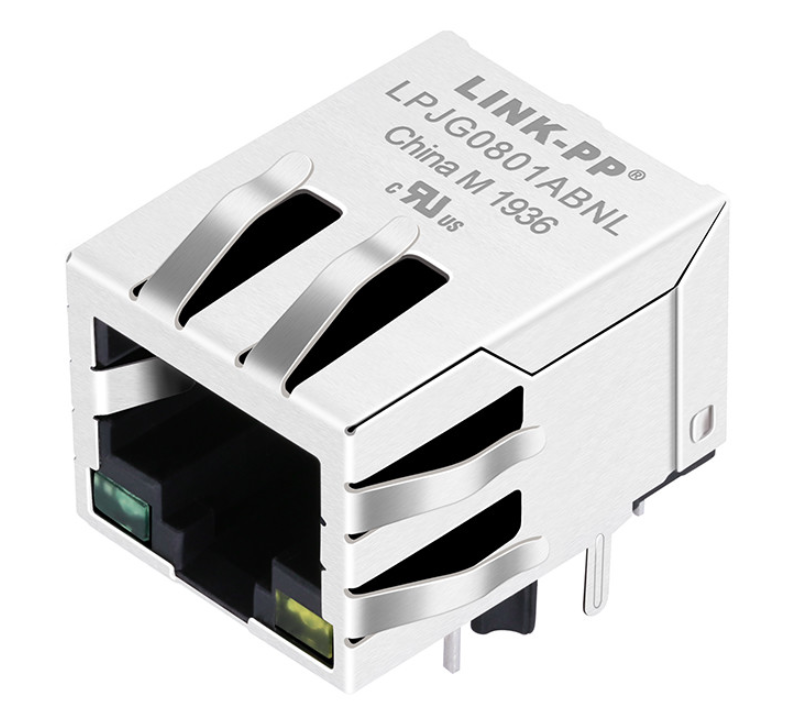

The LPJG0801ABNL is a premium, high-performance 1x1 port RJ45 female connector featuring integrated magnetics designed specifically for Gigabit Ethernet (10/100/1000 Base-T) applications. Engineered for robust networking hardware, this 90-degree right-angle (side entry) Magjack combines superior EMI protection with space-saving integration.
It is constructed with a robust stainless steel shield featuring built-in EMI spring fingers and integrates a Bob Smith termination matching network (75Ω resistors and a 1000pF/2KV high-voltage capacitor). Fully compliant with IEEE 802.3 standards, RoHS directives, and backed by UL Certification, the LPJG0801ABNL guarantees highly reliable, high-speed data transmission for enterprise and consumer networking equipment.
| Parameter | Specification |
|---|---|
| Part Number | LPJG0801ABNL |
| Manufacturer | LINK-PP |
| Product Type | Integrated RJ45 Magnetics Jack |
| Port Configuration | 1 × 1 |
| Connector Type | RJ45 Female (10P8C) |
| Ethernet Speed | 10/100/1000BASE-T |
| Mounting Type | Through Hole |
| Orientation | Right Angle (90° Side Entry) |
| Latch Position | Down |
| Shield | Yes |
| EMI Spring Fingers | Yes |
| LED Configuration | Left Green / Right Yellow |
| PoE Support | Non-PoE |
| Number of Cores | 8 |
| Width | 15.94 mm |
| Height | 13.30 mm (Excluding solder pins and mounting posts) |
| Depth (Length) | 21.25 mm |
| Standards | IEEE 802.3 |
| Certification | UL (E484635), RoHS |
| Parameter | Specification |
|---|---|
| Ethernet Standard | 1000BASE-T |
| Turns Ratio | 1CT:1CT ±5% |
| Open Circuit Inductance (OCL) | ≥350 μH @100 kHz, 0.1 V, 8 mA DC Bias |
| Isolation Voltage | 1500 Vrms (PHY to Line) |
| Insertion Loss | ≤1.2 dB (1–100 MHz) |
| Return Loss |
≥16 dB (1–30 MHz) ≥12 dB (30–60 MHz) ≥10 dB (60–80 MHz) ≥8 dB (80–100 MHz) |
| Crosstalk | ≥30 dB (1–100 MHz) |
| Common Mode Rejection (CMR) | ≥30 dB (1–100 MHz) |
| Bob Smith Termination | Integrated 4 × 75 Ω Resistors + 1000 pF / 2 kV Capacitor |
| Operating Temperature | 0°C to +70°C |
| Feature | Specification |
|---|---|
| Housing | PBT + 30% Glass Fiber, UL94V-0 |
| Contact Material | Phosphor Bronze (C5210R-EH), 0.35 mm |
| Contact Plating | Selective Gold Plating, ≥6 μin |
| Solder Pins | Brass (C2680R-H), 0.35 mm |
| Shield | SUS304 Stainless Steel, 0.20 mm |
| EMI Protection | Integrated EMI Spring Fingers |
| Recommended Soldering | Wave Soldering, 250°C / 5 s Max. |
Designed for high-reliability data communication, this Gigabit Magjack is the perfect component for:
LINK-PP has specialized in Ethernet connectivity and magnetic components for more than 25 years, serving networking, industrial automation, telecommunications, automotive, and medical equipment manufacturers worldwide.
Our advantages include:
Our product portfolio includes:
The LPJG0801ABNL is a single-port Gigabit RJ45 connector with integrated Ethernet magnetics, supporting 10/100/1000BASE-T Ethernet applications.
Yes. It integrates Ethernet isolation transformers, common-mode chokes, Bob Smith termination circuitry, impedance matching components, and a high-voltage capacitor inside the connector.
No. The standard LPJG0801ABNL is designed for Non-PoE Gigabit Ethernet applications. If PoE support is required, LINK-PP offers dedicated PoE and PoE+ MagJack solutions.
The integrated magnetics provide 1500 Vrms isolation between the PHY side and the cable side, meeting IEEE Ethernet isolation requirements.
The connector includes:
These can be configured for link, activity, or speed indication depending on the Ethernet PHY.
The integrated EMI spring fingers improve chassis grounding, reduce electromagnetic interference (EMI), and help networking equipment meet EMC compliance requirements.
Yes. LINK-PP supports customization for:
