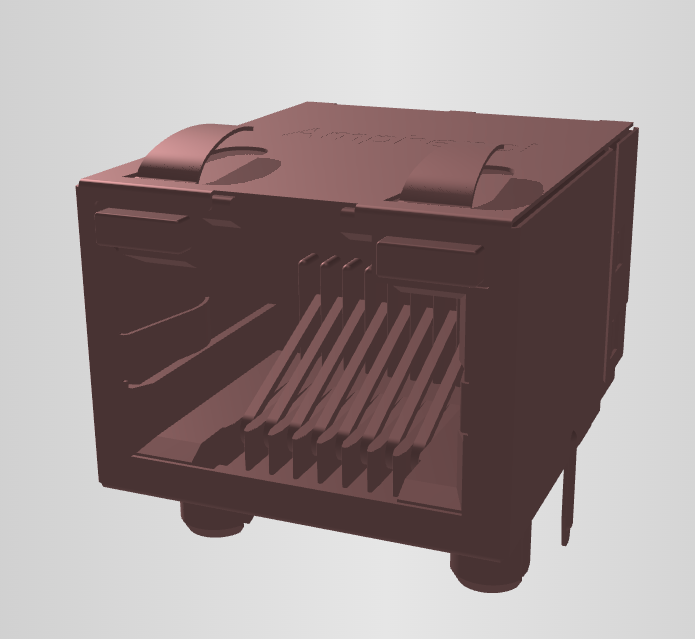

RJE45-188-1401 Vertical 8P8C Modular Jack for CAT6 Performance

RJE45-188-1401 is a high-performance 8P8C modular jack designed for reliable network connectivity in demanding applications. This Amphenol ICC / Amphenol CS connector features a 1x1 single-port vertical design, CAT6 performance, shielded EMI tabs, and through-hole termination for secure PCB mounting. With no LEDs, a low-profile housing, and 50 µin gold plating on the contact area, the RJE45-188-1401 is engineered for stable signal transmission, durability, and long service life.

Key Features of RJE45-188-1401 Vertical CAT6 8P8C Modular Jack

• High-Speed Performance: Fully compliant with CAT6 standards, supporting 10/100/1000 Base-T network physical layer requirements.
• Premium Plating: 50µ" Gold plating on contacts for industrial-grade durability and lowest contact resistance.
• Superior Shielding: Equipped with a full metal shield and EMI grounding tabs to eliminate noise and cross-talk.
• Space-Saving Design: Vertical (top-entry) orientation with a low-profile form factor, optimizing PCB real estate.
• Reliable Mounting: Secure Through-Hole Technology (THT) termination suitable for wave soldering.

RJE45-188-1401 Technical Specifications

RJE45-188-1401 Drawing:

Performance and Reliability Advantages of RJE45-188-1401 Vertical RJ45:

1. Shielded EMI Tabs

The shielded design helps reduce interference and supports more stable signal transmission in noisy electrical environments.

2. 50 µin Gold Plating

The gold-plated contact area improves wear resistance, conductivity, and mating reliability over repeated insertions.

3. Through-Hole Mounting

The through-hole termination style provides strong mechanical anchoring to the PCB, which is ideal for connectors exposed to repeated cable insertion and removal.

4. Vertical Design

The vertical form factor supports compact system layouts while maintaining convenient board integration.

Common Applications

With its 50µ" gold plating and robust EMI shielding, the RJE45-188-1401 is the preferred choice for mission-critical and high-vibration environments, including:

• Telecom/Datacom: Network switches, routers, hubs, and servers.
• Industrial IoT: Industrial PCs, automation controllers, and machine vision systems.
• Consumer Electronics: Smart home hubs and high-end audio/video equipment.
• Test & Measurement: Diagnostic equipment requiring high insertion-cycle longevity.

FAQ About RJE45-188-1401 Modular Jack

The RJE45-188-1401 Modular Jack is a compact, shielded, and high-performance 8P8C RJ45 connector built for CAT6 networking applications. With through-hole mounting, gold-plated contacts, and no LED option, it delivers the reliability and signal quality demanded by modern communication and industrial systems.

1. What is the RJE45-188-1401?

RJE45-188-1401 is an Amphenol ICC / Amphenol CS 8P8C modular jack designed for Ethernet and network applications. It features a single-port vertical layout, CAT6 performance, and shielded EMI tabs.

2. Is the RJE45-188-1401 an RJ45 connector?

Yes. The RJE45-188-1401 is an RJ45-style modular jack with 8P8C contact configuration, which is commonly used in Ethernet networking.

3. Does RJE45-188-1401 include LEDs?

No. This part number is specified as without LEDs and without light pipe.

4. Is RJE45-188-1401 shielded?

Yes. It uses EMI tabs, making it a shielded modular jack suitable for applications that need better noise suppression.

5. What mounting style does this connector use?

The connector uses a through-hole termination style, which provides strong PCB retention and reliable mechanical stability.
