Número do modelo: LPJG4801GENL
Documento: LPJG4801GENL.pdf
Termos do pagamento & do transporte
Quantidade de ordem mínima: 50/500/1000
Preço: $0.95
Detalhes da embalagem: 50pcs/tray, 1200pcs/carton
Tempo de entrega: em Stock Ship Hoje
Termos de pagamento: TT, Net30/60/90 dias
Habilidade da fonte: 4600K.PCS/Mês
Número da peça: |
LPJG4801GENL |
Número de portas: |
1x1 |
Trava: |
Abaixo |
Taxa de dados: |
1000Base-T |
PoE: |
Não |
Opção LED: |
Com |
EMI Tabs: |
Com |
Tipo de montagem: |
Tht |
Tipo de solda: |
Aceno |
Faixa de temperatura operacional: |
-40°C a +85°C |
Número da peça: |
LPJG4801GENL |
Número de portas: |
1x1 |
Trava: |
Abaixo |
Taxa de dados: |
1000Base-T |
PoE: |
Não |
Opção LED: |
Com |
EMI Tabs: |
Com |
Tipo de montagem: |
Tht |
Tipo de solda: |
Aceno |
Faixa de temperatura operacional: |
-40°C a +85°C |

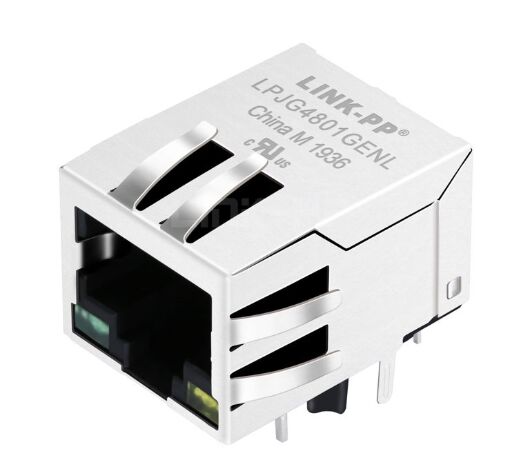

LPJG4801GENL is a single-port magnetic RJ45 connector with green/yellow LEDs, tab-down latch, EMI tabs, and 10/100/1000 Base-T support for non-PoE Ethernet designs.
| Item | Specification |
|---|---|
| Part Number | LPJG4801GENL |
| Connector Type | Magnetic Jack / RJ45 Female Connector |
| Port Count | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle, Side Entry |
| Latch | Down |
| LED Option | Green/Yellow |
| Shielding | EMI Tabs With Shield Support |
| Temperature Range | -40°C to +85°C |
| Package Size | 21.25 mm × 15.93 mm × 13.30 mm (L × W × H) |
| Item | Specification |
|---|---|
| Turns Ratio | TX = 1CT:1CT, RX = 1CT:1CT |
| Inductance | 350 µH min @ 100 kHz, 100 mV, 8 mA DC bias |
| Insertion Loss | 1~100 MHz: -1.0 dB max |
| Return Loss | 1~30 MHz: -18 dB min; 30~60 MHz: -16 dB min; 60~80 MHz: -12 dB min; 80~100 MHz: -10 dB min |
| Crosstalk | 1~30 MHz: -40 dB min; 30~60 MHz: -35 dB min; 60~100 MHz: -30 dB min |
| Common Mode Rejection | 1~50 MHz: -40 dB min; 50~150 MHz: -30 dB min |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | -40°C to +85°C |
The LPJG4801GENL is specifically designed for high-speed data transmission in various sectors:
The LPJG4801GENL is a high-performance, integrated Magnetic RJ45 Jack (MagJack) designed for Gigabit Ethernet applications. Combining superior EMI shielding with industrial-grade durability, this 10/100/1000 Base-T connector is the ideal solution for networking interfaces that require a compact footprint without compromising signal integrity.
With its 90° Right Angle orientation and Side Entry PCB mounting, it is engineered for seamless integration into routers, industrial PCs, and telecommunications equipment.
It is used as an integrated magnetic RJ45 connector for 10/100/1000 Base-T Ethernet ports in non-PoE network designs.
Yes. The product is listed with green/yellow LED options.
Yes. LINK-PP lists the mounting type as through hole.
It supports -40°C to +85°C.
