Detalhes do produto
Lugar de origem: Guangdong,China
Marca: LINK-PP
Certificação: UL,RoHS,Reach,ISO
Número do modelo: J9151D
Termos do pagamento & do transporte
Quantidade de ordem mínima: 400/2000/10K/25K
Preço: $3.2-$5
Detalhes da embalagem: T&R
Tempo de entrega: Em estoque navio dentro de 3 dias
Termos de pagamento: TT, Net30/60/90 dias
Habilidade da fonte: 3kk/mês
Número da peça: |
J9151D |
100% Cruzado: |
LS-SM3110-10C |
Série: |
SFP+ 10Gbase LR |
DOM/DDM: |
Apoiar |
Hot-Swappable: |
Sim |
Aplicativo: |
Ethernet 10GBASE-LR |
Número da peça: |
J9151D |
100% Cruzado: |
LS-SM3110-10C |
Série: |
SFP+ 10Gbase LR |
DOM/DDM: |
Apoiar |
Hot-Swappable: |
Sim |
Aplicativo: |
Ethernet 10GBASE-LR |

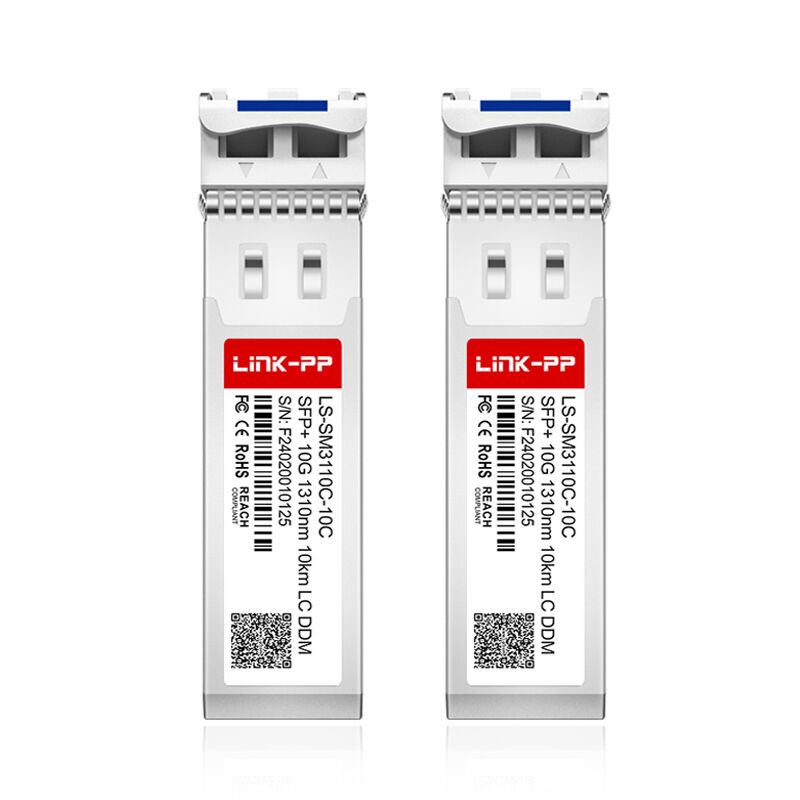

HPE Aruba J9151D 10G SFP+ LR Transceiver, 1310 nm, 10 km SMF, LC Duplex, DDM Supported — High-performance long-reach 10-Gigabit optical module for enterprise and data-center networks.
The HPE Aruba J9151D is a high-performance 10G SFP+ LR (Long-Reach) optical transceiver designed for enterprise switching, data-center interconnects, aggregation networks, and backbone links.
Operating at 1310 nm over single-mode fiber (SMF), the J9151D delivers up to 10 km transmission distance and supports full 10-Gigabit Ethernet performance.
Featuring Digital Optical Monitoring (DOM/DDM), low power consumption, and full compliance with SFP+ MSA and IEEE 802.3ae 10GBASE-LR standards, the J9151D ensures stable and reliable fiber connectivity for mission-critical deployments.
| Parameter | Specification |
|---|---|
| Model | HPE Aruba J9151D |
| Form Factor | SFP+ |
| Application | 10GBASE-LR Ethernet |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) 9/125 µm |
| Connector |
Duplex LC |
| Parameter | Specification |
|---|---|
| Data Rate | 1.25–10.31 Gbps |
| Max Distance | 10 km over SMF |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | approx. −14 dBm (typical) |
| Optical Budget | approx. 6 dB (varies by vendor) |
| Parameter | Specification |
|---|---|
| Power Supply | +3.3 V |
| Operating Temperature | 0°C to 70°C (commercial) |
| Compliance | SFP+ MSA, IEEE 802.3ae, IEC-60825-1 laser safety, RoHS |
| DOM/DDM Support | Yes (temperature, voltage, Tx/Rx optical power) |
