Detalhes do produto
Lugar de origem: Guangdong, China
Marca: LINK-PP
Certificação: UL, Reach, RoHs, ISO19001, ISO14001
Número do modelo: HXB5G602NL
Termos do pagamento & do transporte
Quantidade de ordem mínima: 50pcs
Preço: $0.46-$2.2
Detalhes da embalagem: 50pcs/tray, 1200pcs/carton
Tempo de entrega: Cerca de 3-5 dias
Termos de pagamento: TT, Net30/60/90 dias
Habilidade da fonte: 5500K-PCS/mês
Tipo de produtos: |
Poder sobre o transformador dos ethernet |
Número de portas: |
Quad Port |
Velocidade: |
5G Base-T |
Ângulo da montagem do PWB: |
Entrada lateral |
Aplicação-Lan: |
Ethernet (PoE+) |
Temperatura operacional: |
-40℃-+85℃ |
Turns Ratio: |
1CT: 1CT |
Classificação de energia: |
90 w |
Tensão de isolamento: |
1.5 KVrms |
módulo: |
HXB5G602NL |
Tipo de produtos: |
Poder sobre o transformador dos ethernet |
Número de portas: |
Quad Port |
Velocidade: |
5G Base-T |
Ângulo da montagem do PWB: |
Entrada lateral |
Aplicação-Lan: |
Ethernet (PoE+) |
Temperatura operacional: |
-40℃-+85℃ |
Turns Ratio: |
1CT: 1CT |
Classificação de energia: |
90 w |
Tensão de isolamento: |
1.5 KVrms |
módulo: |
HXB5G602NL |

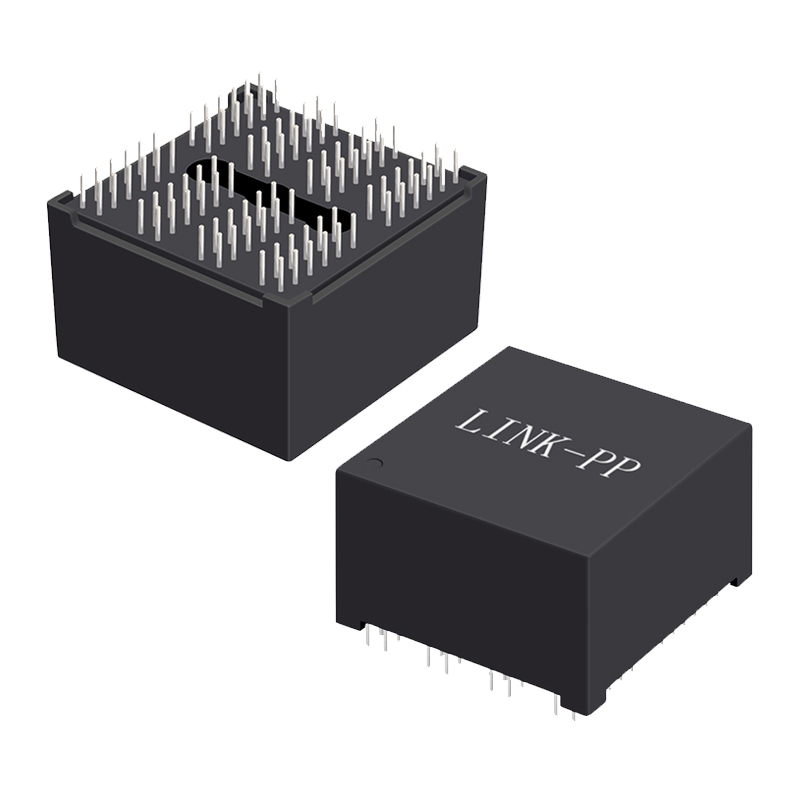

The HXB5G602NL is a high-performance LAN transformer designed to support 5G Base-T Ethernet applications. Featuring a QUAD-channel architecture, it delivers reliable multi-port connectivity for next-generation networking equipment. With a 1:1 turns ratio, this PoE Magnetics ensures excellent signal integrity and low insertion loss.
Engineered with an extended operating temperature range (-40°C to +85°C), the HXB5G602NL provides robust performance in industrial and telecom environments. It supports 4-Pair Power over Ethernet (4PPoE) up to 90W, enabling both data and high-power delivery through a single Ethernet connection.
The transformer adopts a 96-pin through-hole design (THD) for secure mounting and mechanical stability in high-density PCB layouts. In addition, the product is lead-free (NPB compliant) and supplied in tube packaging.
With its combination of modular design, advanced PoE support, and rugged construction, the HXB5G602NL is ideally suited for 5G small cells, high-power PoE switches, IoT gateways, and enterprise networking systems.
| Name | PoE LAN Magnetics |
|---|---|
| Application | 5G Base-T backward compatible with 1/2.5G Base-T |
| Mounting Type | Through Hole |
| Number of Pins | 96 |
| Dimensions (L x W x H) | 33.50mm x 29.00mm x 16.80mm (1.319" x 1.142" x 0.661") |
| Operating Temperature Range | -40°C to +85°C |
| Open Circuit Inductance (OCL) | 180 µH (Min) @ 100KHz, 0.1V With 8mA DC Bias |
| Turns Ratio | 1CT : 1CT ± 2% |
| Insertion Loss | -1.0 dB (Max) @ 1 - 100 MHz -2.0 dB (Max) @ 100 - 250 MHz |
| Return Loss | -16 dB (Min) @ 1 - 40 MHz -(16-10*log10(f/40)) dB (Min) @ 40 < f ≤ 250 MHz |
| Crosstalk (Port-to-Port) | -40 dB (Min) @ 1 - 100 MHz |
| Common Mode Rejection Ratio (CMRR) | -30 dB (Min) @ 1 - 100 MHz |
| Hipot (Isolation Voltage) | 1500 Vrms 60 seconds |
| PoE Current Capability | 1000 mA per pair Supports 4-Pair PoE (4PPoE) up to 90W |
| Soldering Process | Wave solder capable up to 260°C / 5 seconds |
|
Certifications |
IEEE 802.3bz,IEEE 802.3bt,RoHS,IEC-62368-1 |
| Packaging | Tube (TU) |
