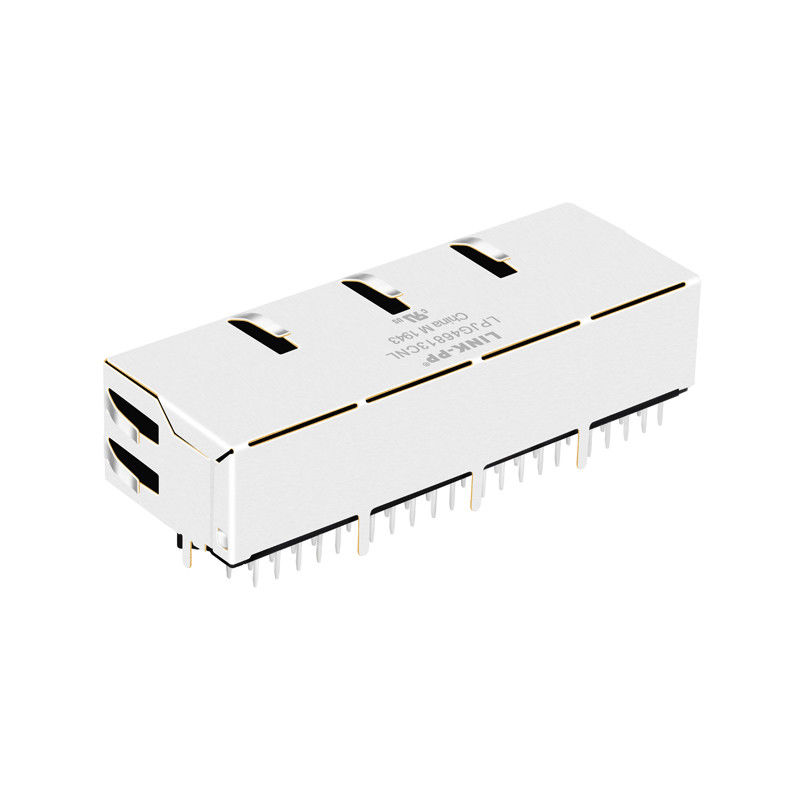

HFJ14-1G01ERL 1x4 RJ45 Connector With 1000 Base-T Magnetic Modules

Description of HFJ14-1G01ERL 1x4 RJ45 Connector :



The HFJ14-1G01ERL is an RJ45 connector with integrated 10/100/1000 Base-T magnetic. This 1x4 tab-down jack is designed for right-angle (90°) panel mount applications, with a shielded design that includes EMI tabs for enhanced signal integrity. The connector operates within a temperature range of 0℃ to 70℃ and supports a voltage rating of 1.5 kV. This connector does not support PoE and does not include LED indicators. It is terminated via soldering, with contacts made of phosphor bronze and plated with gold, ensuring reliable performance. The material flammability class is UL 94 V-0, indicating high safety standards.

Specifications of RJ45 Magnetic Jack:





Series

HALO Electronics HFJ-1G

Part Number HFJ14-1G01ERL
Part Status Active
Connector Type RJ45 Connector With Magnetic
Speed 10/100/1000 Base-T
Number of Ports 4 Ports
Number of Rows 1 Row
Number of Positions/Contacts 10P8C
Tab Direction Tab Down
PoE None
Orientation 90° Angle (Right)
Shielding Shielded
EMI Tabs With
LED Option Without
Mounting Style Panel Mount
Mounting Angle Right Angle
Termination Style Solder
Operating Temperature 0℃ TO 70℃
Voltage Rating 1.5 kV
Contact Material Phosphor Bronze
Contact Plating Gold
Material flammability class UL 94 V-0

HFJ14-1G01ERL 1000 Base-T RJ45 Connector Dimensions:



HFJ14-1G01ERL 1x4 RJ45 Connector With 1000 Base-T Magnetic Modules 0

HFJ14-1G01ERL 1X4 RJ45 Connector Schematics :

HFJ14-1G01ERL 1x4 RJ45 Connector With 1000 Base-T Magnetic Modules 1





HFJ14-1G01ERL Recommended PCB Layout:



HFJ14-1G01ERL 1x4 RJ45 Connector With 1000 Base-T Magnetic Modules 2
