LP11BC01000 1x1 SFP+ Cage Press-Fit With EMI Spring Finger

Detalhes do produto

Place of Origin: GuangDong, China

Marca: LINK-PP

Certificação: UL,RoHS,REACH,ISO

Model Number: LP11BC01000

Termos do pagamento & do transporte

Minimum Order Quantity: 50/1200pcs

Preço: $0.5-$1.2

Packaging Details: Reel

Delivery Time: 1-2 Weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5KK/Month

Obtenha o melhor preço
Destaque:

1x1 SFP+ Cage

,

SFP+ 1x1 Cage

,

SFP+ Press-Fit Cage

Product Type:
Cage
Form Factor:
SFP+
Port Matrix Configuration:
1 x 1
Operating Temperature Range:
-55 – 85 °C
Packaging Method:
Tray
Compatible Brands:
TE
Types:
SFP+
Number of Ports:
1x1
Data Rate (Max)(Gb/s):
16
Termination Method:
Press Fit
Lightpipes:
Without
Heatsinks:
Without
EMI Containment Feature Type:
Internal/External EMI Springs
Product Type:
Cage
Form Factor:
SFP+
Port Matrix Configuration:
1 x 1
Operating Temperature Range:
-55 – 85 °C
Packaging Method:
Tray
Compatible Brands:
TE
Types:
SFP+
Number of Ports:
1x1
Data Rate (Max)(Gb/s):
16
Termination Method:
Press Fit
Lightpipes:
Without
Heatsinks:
Without
EMI Containment Feature Type:
Internal/External EMI Springs

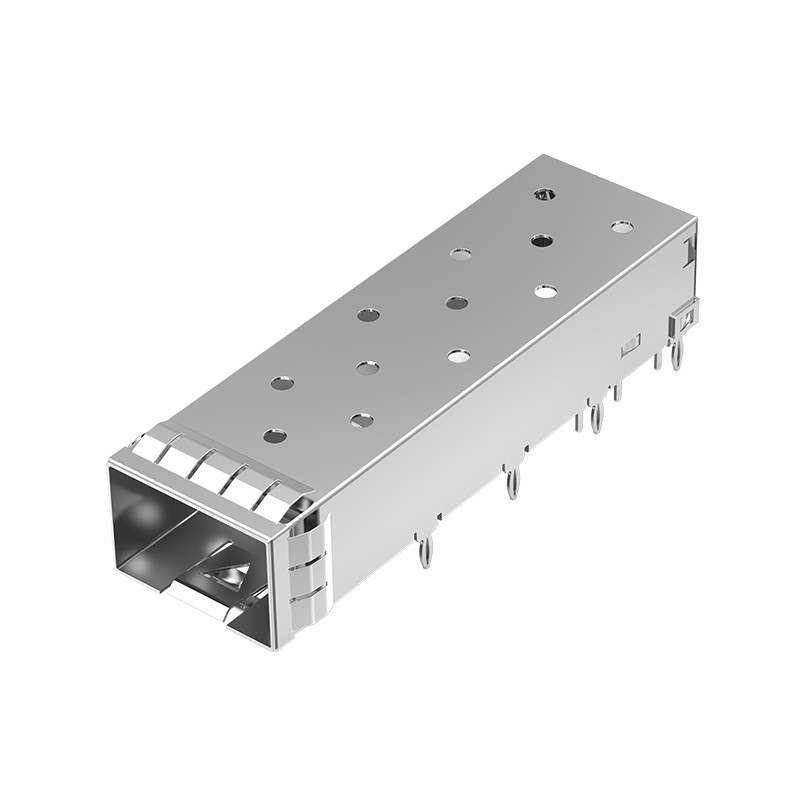

LP11BC01000 1x1 SFP+ Cage Press-Fit With EMI Spring Finger

Overview of 1X1 SFP+ Cage:



The LP11BC01000 SFP+ Cage is made from nickel-plated copper alloy, designed for high-speed data communication applications. It features a 1x1 port configuration and supports a wide operating temperature range from -55°C to 85°C. The cage employs through-hole, right-angle mounting with press-fit termination, and does not include a lightpipe. Its dimensions are 9.70 mm in height, 48.70 mm in length, and 14.00 mm in width. The cage also includes EMI springs for effective electromagnetic interference containment, and it comes in tray packaging.

LP11BC01000 Specifications:

SFP+ 1x1 Cage

Compatible Brands

TE, Amphenol, Molex

Data Rate

16Gb/s Max

Number of Ports

1x1

Termination Method Press Fit

Lightpipes

Without

Heatsinks

Without

EMI Containment Feature Type

Internal/External EMI Springs

Operating Temperature Range

-55°C to +85°C

Connector Type SFP+

Material

Copper alloy with nickel plating

Length

48.70 mm (1.917 inches)

Width

14.00 mm (0.551 inches)

Height 9.70 mm (0.382 inches)

Package

Tray

LP11BC01000 Drawing:



LP11BC01000-MY.pdf
